Bead Mill manufacturer

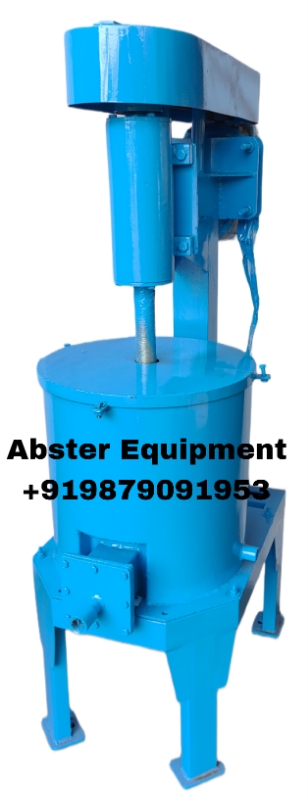

Bead Mill

Capacity : As per Customers requirment from 50 liter to 5000 liters.

paint Bead Mill Bead Mills are used for Grinding and milling, Partical Size Reduction for various product like Paint, Pigment, and allied chemical. it is also come with water cooling jacket where acess heat generate by Grinding.

Following Grinding media can be use : Steel balls/ Natural Pebbles / Flint Pebbles / Steatite / Ceramic Balls.


Application and introduction

Product Overview

Key Features

We are top Bead Mill manufacturers in manufacturing and supplying a huge array of Bead Mill in Ahmedabad, Gujarat, India.

Capacity : 1 Lts. Lab model, 4 Lts. Sample model to 1000 Lts. gross shell volume capacity.

Make : S.S., M.S. or Twin Shell, i.e. S.S. & M.S. with option of Single shell operation or both shells operating simultaneously.

Bead Mill is a batch process equipment designed for optimum efficiency with very low energy Requirement. The dispersion time is as low as 30 min. for Titanium Dioxide to as high as 90 min. for Carbon Black, after all the Pigments has been incorporated (Loaded) in the machine and does not include charging and discharging time.

The dispersion time heavily depends on formulation and other operating parameters. In general the total batch time, including charging & discharging alongwith dispersion time will be around Two to Two & a half hours,which varies according to the operation style and functioning of the Industry.

Bead Mills are designed for dispersion processing, where solid particles (pigments, fillers) are reduced in size and finely dispersed and wetted out in a liquid phase. Small ceramic, glass or metal beads are agitated inside the mill chamber to aid particle size reduction through impact and energy input. Post dispersion the mill base is pumped to the let down tank for completion.

Bead mills are one of the most effective methods for processing particles into micron to sub-micron size range. A wide variety of designs exist to adapt to the different viscosities, material characteristics and targeted particle size dispersions. Depending on the machine design, bead mills are operated in discrete pass or continuous operation. MOC of discs can be varied depending on the requirement.

Features

• Grinding media from 2.5 down to 0.3 mm can be used to create ultra fine dispersions
• Easy to operate, very few parts make it easy to maintain
• Enhanced design of cooling jacket helps in maintaining process temperatures

Technical Specification of Bead Mill

Specification
MODEL NO. VESSEL POWER
ABF BM 50 50 LTR 3 HP
ABF BM 100 100 LTR 5 HP
ABF BM 150 150 LTR 7.5 HP
ABF BM200 200 LTR 10 HP
ABF BM 250 250 LTR 15 HP
ABF BM 500 500 LTR 30 HP
ABF BM 1000 1000 LTR 50 HP
