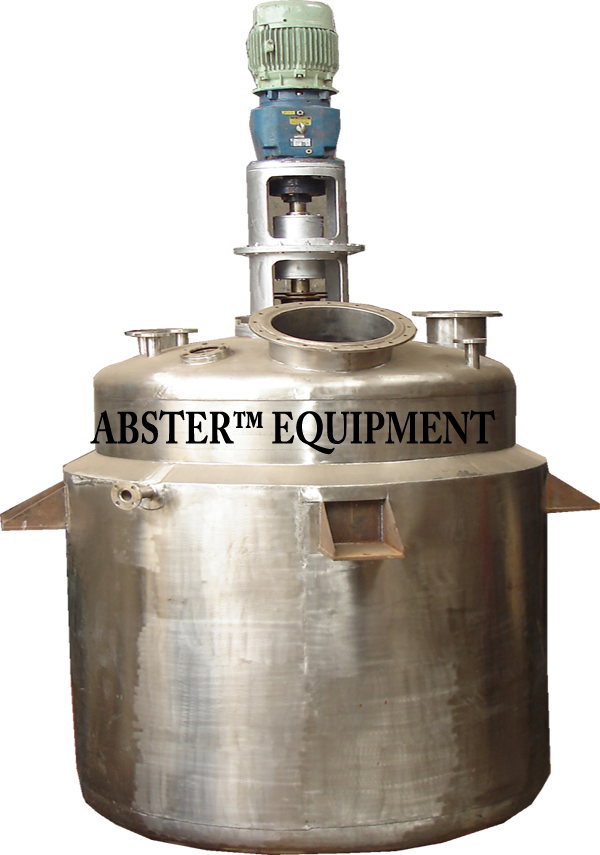

Stainless Steel Chemical Reactor
We offer high quality Chemical Reactor in different capacities ranging from 50 liters to 15,000 liters. Fabricated from superior grade of stainless steel, these chemical Reactor vessels can be provided with different types of agitators such as anchor type, propeller type, paddle type, pitched blade turbine type of high-speed homogenizer. The unique design of our reaction vessels allow the conditions to be controlled for fastest possible chemical reaction.
Chemical reactors are vessels designed to contain chemical reactions. One example is a pressure reactor. The design of a chemical reactor deals with multiple aspects of chemical engineering. Chemical engineers design reactors to maximize net present value for the given reaction. Designers ensure that the reaction proceeds with the highest efficiency towards the desired output product, producing the highest yield of product while requiring the least amount of money to purchase and operate. Normal operating expenses include energy input, energy removal, raw material costs, labor, etc. Energy changes can come in the form of heating or cooling, pumping to increase pressure, frictional pressure loss (such as pressure drop across a 90° elbow or an orifice plate), agitation, etc.
Stainless Steel Chemical Reactor oem manufacturer & oem manufacturer, stainless steel chemical reactor
Stainless Steel Chemical Reactor specification
| Specification(L) | 10~10000L |
| Design Pressure(Mpa) | Atmospheric or under pressure |
| Material | Carbon steel, stainless steel, enamel, graphite |
| Heating Forms | Electrical heating with medium in jacket, external half-pipe coil steam heating, external half-pipe conduction oil heating, hot water infrared heating. |
| Cooling Forms | Refrigeration medium in the internal pipe coil or jacket |
| Blending Power | Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil. |
| Stirring Blade Forms | Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type. |
| Seal | Mechanical seal or stuff packing seal |
| Inner Surface Treatment | polished or no polished |
| Discharge Valve | Flanged ball valve open downward discharge valve and others |
| Technological Pipe Hole | Manhole, sight glass, distillation hole, feed material hole, pressure gauge hole, temp. hole, etc. According to the process requirements increase or decrease |
Techincal Parameters Of Reactor with jacket electric heating
| Type | 50L | 100L | 200L | 300L | 500L | 1000L | 1500L | 2000L | 3000L | 4000L | 5000L |
| Cylinder Size(mm) | 450×500 | 450×500 | 600×700 | 750×750 | 900×800 | 1200×1000 | 1300×1200 | 1400×1500 | 1600×1500 | 1700×1800 | 1800×2000 |
| Actual Capacity(L) | 61 | 150 | 253 | 396 | 699 | 1393 | 2166 | 3000 | 4066 | 5400 | 6600 |
| Jacket Capacity(L) | 65 | 120 | 200 | 250 | 290 | 560 | 617 | 750 | 1015 | 1226 | 1440 |
| Heating Area() | 0.78 | 1.36 | 1.9 | 2.41 | 2.7 | 4.5 | 5.9 | 7 | 9 | 11 | 12.8 |
| Motor Power(kw) | 0.55 | 1.1 | 1.5 | 3 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 11 | 11 |
| Rotating Speed(r/min) | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 63 | 63 | 63 |
| Discharg ing Valve | DN25 | DN25 | DN40 | DN40 | DN50 | DN50 | DN50 | DN65 | DN65 | DN80 | DN80 |
