Paste Preparation Vessel

Pharmaceutical paste prepration vessel Pharmaceutical paste prepration vessel

Starch Paste Preparation Vessel

  • cGMP construction.
  • All the contact parts will be made from SS 316.
  • High speed propeller type stirrer with flame proof drive motor.
  • Suitable for preparing Coating solution for Sugar Coating as well as Film Coating.
  • Steam jacket shall be provided upon request.
  • If require, vessel provided with pneumatic stirrer.
  • Available in 10 Ltrs. To 1000 Ltrs. Capacity.
  • Product contact surfaces shall be polished to mirror polish.
  • CIP / SIP facility provided upon request.
  • Tailor made design available upon request.
  • Grade : SS 304, SS 316 L
  • Make : Abster

Binder paste Preparation Vessel

We are instrumental in offering a quality range of Binder Paste Kettle Vessel, called as Vessel for preparation Tablet Coating Solution specially manufactured by high grade raw material. This Paste Kettle Vessel is widely appreciated for its features like efficient for preparation of starch paste, excellent durability, strong structure, high performance and fine finishing. We are also offering customized range of Paste Kettle Vessels as per the requirement of the client. We are offering Paste Kettle Vessel at market leading prices.

Technical Specification of Paste Kettle

Model SPK 100 SPK 200
Gross Volume 100 Liters approx. 200 Liters approx.
Working Volume 80 Liters approx. 160 Liters approx.
Machine Constructions · Contact Parts: Stainless Steel 316

· Non-Contact Parts: Stainless Steel 304

· End Shaft: EN – 8 material

· Control Panel: Stainless Steel 304

 · Contact Parts: Stainless Steel 316

· Non-Contact Parts: Stainless Steel 304

· End Shaft: EN – 8 material

· Control Panel: Stainless Steel 304
Material of Constructions · Shell: Stainless Steel 316

· Jacket: Stainless Steel 304

· Insulation: Stainless Steel 304

 · Shell: Stainless Steel 316

· Jacket: Stainless Steel 304

· Insulation: Stainless Steel 304
Design Tilting Type Tilting Type
Heating Mode Through Electrical Heaters Through Electrical Heaters
Jacket Thickness SS 304 Materials SS 304 Materials
Insulation Mineral wool insulation Mineral wool insulation
Cladding Stainless Steel 304 materials Stainless Steel 304 materials
Agitator Anchor type agitator Anchor type agitator
Anchor Mounting Top of the kettle fixed type Top of the kettle fixed type
Drive 1 H. P., 1440 RPM Induction Motor 2 H. P., 1440 RPM Induction Motor
Power Voltage 440 Volts, 3 Phase, 50 Hertz 440 Volts, 3 Phase, 50 Hertz
Gearbox Suitable size gearbox Suitable size gearbox
Gearbox RPM 30 RPM 30 RPM
Top Lid Loose Lid type cover Loose Lid type cover
Tilting System Design Worm Gear type with Handle Worm Gear type with Handle
Frame Construction Rectangular pipe in S.S. 304 construction with no open ends Rectangular pipe in S.S. 304 construction with no open ends
Heaters Water Immersible type Heaters Water Immersible type Heaters
Bearings Pillow type Pillow type

Salient Features :

  • cGMP Construction
  • All contact parts of SS 316 grade
  • Hemispherical bowl
  • Bowl tilting by manual by worm and worm wheel
  • Teflon scrapper for scrapping the paste
  • Split, hinged top lid
  • Excess pressure release valve on jacket for steam
  • VFD for stirrer speed variation (Optional)

Paste Kettel Specification



Tech. Specification



20 litre



30 litre



60 litre



100 litre



150 litre



200 litre



250 litre

Product Container

20 litre

30 litre

60 litre

100 litre

150 litre

200 litre

250 litre

Batch Capacity

15 litre

20 litre

40 litre

70 litre

105 litre

140 litre

175 litre

Motor HP

0.5

0.5

0.5

1.0

1.5

2.0

2.0

Electric Heater

2.0 KW

3.0 KW

4.0 KW

6.0 KW

4x3 KW

6x3 KW

6x3 KW

Steam in kg/hr at 2.5 kg/cm sq

5-10

10-15

20-25

30-40

40-50

50-60

60-80

Overall dimension in mm (approx.)

1150 (L)

825 (W)

1500 (H)

1150 (L)

950 (W)

1500 (H)

1175 (L)

1225 (W)

1725 (H)

1275 (L)

1250 (W)

1775 (H)

1425 (L)

1300 (W)

1975 (H)

1425 (L)

1300 (W)

1975 (H)

1750 (L)

1650 (W)

2225 (H)

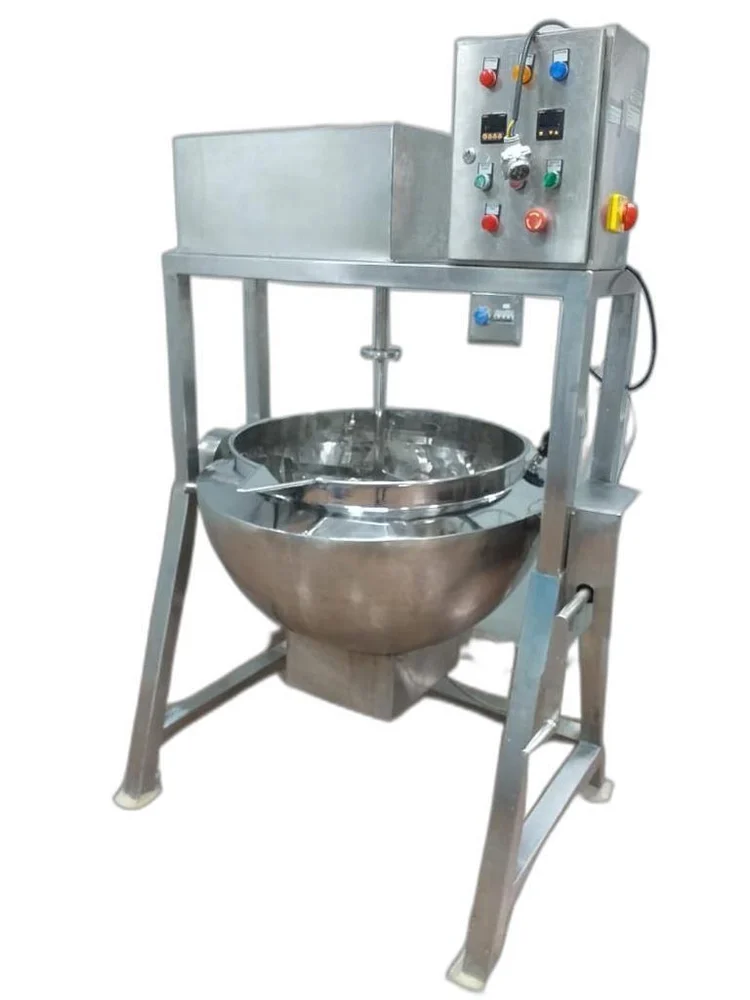

Construction of Paste Kettle Vessel


Paste Kettle Vessel Will Be Made Out Of S.S. 304 Rectangular Pipes Of 3 Mm Thk And Will Be An Independent Resting Type Frame Work Where No Foundation Will Be Required. The Kettle Will Be A Hemispherical Type Bowl With Either Steam / Oil / Water Heating Jacket Will Be Provided. The Kettle Will Be Manufactured From 2.5 Mm Thk S.S. 304 Sheet And The Jacket Will Be Of 2.5 Mm Mild Steel (In Case Of Steam Jacket The Thickness Will Be 4 Mm). There Will Be Oil / Water Heated Fitted At The Back Bottom Side Of The Kettle. The Kettle Will Be Having A Worm Type Arrangement For Tilting. A Temperature Controller And A Temp Indicator Will Be Provided For Temp Control And Indication. The Kettle Will Be Insulated With 50 Mm Thk Glass wool Insulation And Claded With 16 Swg S.S. 304 Sheet. Kettle Will Be Buffed To 150 Grit Matt Finish Externally And Internally The Kettle Will Be Buffed To 220 Grit Mirror Finish.

Available In

  • Steam Fittings With All Connections Factory Fitted

Binder Preparation Vessel

Functions
Basically This Unit Is Used For Preparation Of Starch Paste. Hemispherical Shape Ensures That The Heating Of The Starch Paste Is Uniform And Gets More Surface Area. The Tilting Type Arrangement Ensures Ease In Unloading The Paste Into Any Container Or Vessel. The Starch Is Put In The Kettle And Water Is Added Till Desired Thickness Is Achieved. The Kettle Is Jacketed And Is Heated Till Till The Starch Melts And A Thick Paste Is Achieved. This Paste Can Be Agitated Either Manually Or With The Help Of A Anchor Type Agitator Which Will Constantly Stir The Paste So That There Will No Lumps Formation And Proper Mixing Is Achieved. Temperature Can Be Set To Desired Temp By Adjusting The Thermostat Provided And The Temperature Can Be Seen In The Dial Thermometer Provided.
