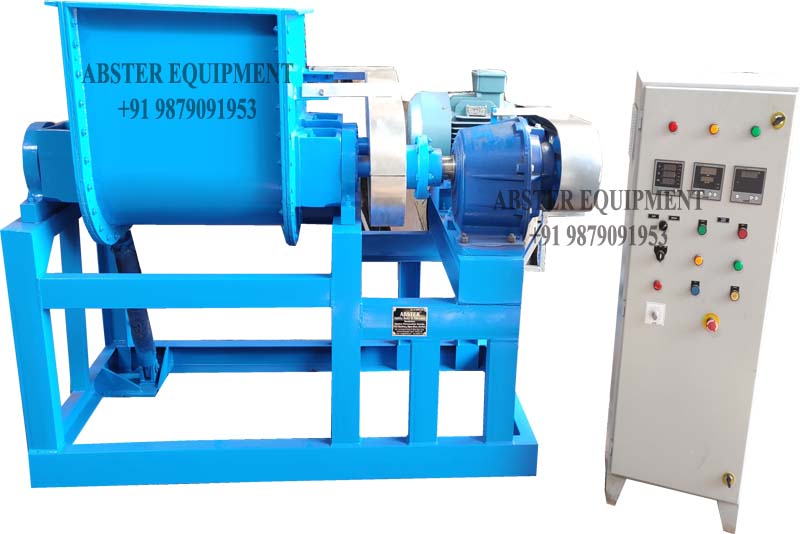

Bubble Gum Sigma Mixer is an widely used mixing machine ,with strong mixing blade and motor ,mainly for high viscous materials and slurries, It with special Z blade ,and a U shape chamber with cover , Two blade rotating with different speed ,one is slow and one is quick .two speed producing an high forced power to the materials to make the materials well mixed and stable uniformed.
The sigma blade mixer is widely used on many areas which are suitable for hard and high viscous materials .like food industry ,plastic .,rubber ,and chemicals.
Sigma Mixer machine is a Batch type Mixer
In sigma mixer, Mixing Trough and Blades are fabricated from mild steel, stainless steel 304 and 316 grade.
Blades of sigma mixers are designed to obtain thorough mixing of high viscosity materials.
Sigma Mixers Blades are machined to keep minimum equal gap between through walls and blades.
Sigma mixers have fixed with Heavy-duty gears to sustaion of load of Kneading.
Shaft sealing into the stuffing boxes is provided by Teflon Chevron Rings / PTFE breaded gland rope to prevent leaking from blade ends.
Safety Guards and Grills are provided for maximum safety in sigma mixers

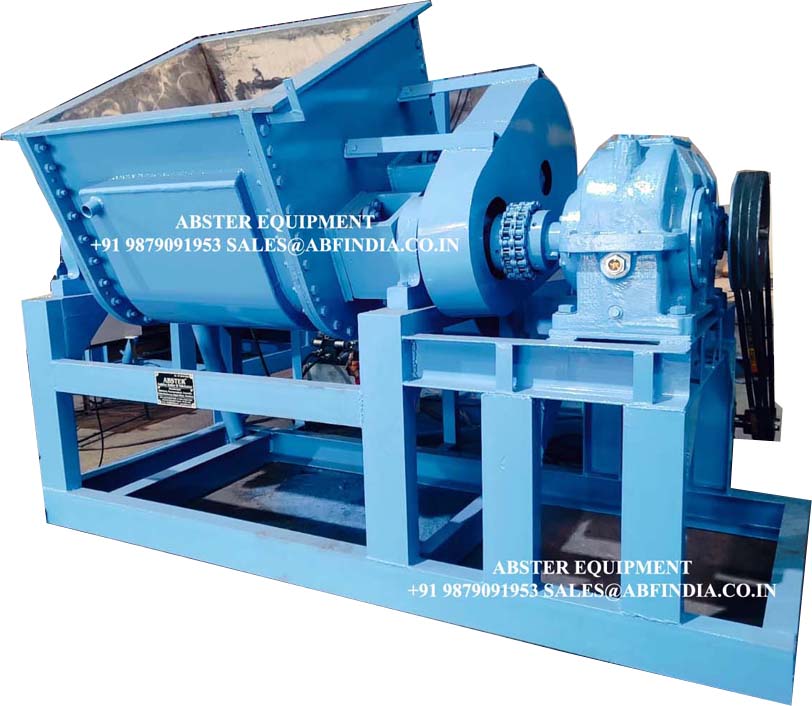

Bubble gum chewing gum sigma mixer is an very necessary equipment for bubble gum and chewing gum
production ,It is working with high efficiency and low energy cost . and vacuum system and screw extruder device is guaranteed the quality and purify.
| Model | Capacity (L) | Power (kw) | Rotating speed rpm | Vacuum degree( Mpa) | Weight | Jacket |
| SM-5 | 5 | 0.75 | 33/23 | -0.094 | 300 | Customized |
| SM-10 | 10 | 1.1 | 33/23 | -0.094 | 400 | Customized |
| SM-50 | 50 | 3 | 45/23 | -0.094 | 600 | Customized |
| SM-100 | 100 | 7.5 | 35/22 | -0.094 | 1200 | Customized |
| SM-300 | 300 | 11-30 | 37/21 | -0.094 | 1600 | Customized |
| SM-500 | 500 | 15-37 | 35/25 | -0.094 | 3000 | Customized |
| SM-1000 | 1000 | 22-90 | 35/25 | -0.094 | 4500 | Customized |
| SM-1500 | 1500 | 22-90 | 30-16 | -0.094 | 5800 | Customized |
| SM-2000 | 2000 | 30-110 | 30/16 | -0.094 | 6000 | Customized |
CHOOSE ABSTER™ !!
