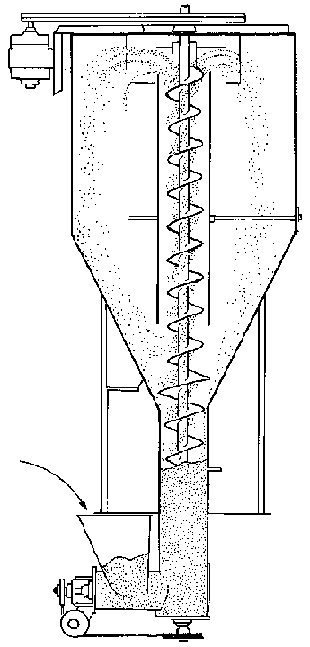

We are lead manufacturer and supplier of Vertical powder Mixer Machines. The materials to be mixed are fed into the mixing s ilo either from the top via a cyclone or via the feed hopper a t the conical lower section. In the screw housing the conveying s crew transports the materials vertically upward where - due to the rotational movement - they will be radially dischar ged into the silo's storage space. In this way an intensive inter mixing of the fed materials is achieved

Large vertical mixer is suitable for a variety of granule raw materials mixing, caused by vertical screw vane vortex to achieve the purpose of mixing, due to the vortex is produced by mixing materials at the bottom of the barrel, the raw materials which is waiting for mix will involved in installation in the central division of mixing screw ,then along the screw is rolled up to the top and dropped so as to complete the uniform mixing in a short time; In addition to the function of mixing , also can select the auxiliary drying and heating attachment.

Spiral agitator blade

The sprial paddle is vertically assembled to ensure the raw material can evenly mix ；

Discharging mode

The manual feeding port height is 800mm, it can manual discharging at side, also can choose automatic discharging with feeding system;

Top parts is detachable

The top parts is detachable( barrel cover, reducer motor and screw), which structure is simple and easier to maintain and clean；

Rapid mixing

Adopts the working mode is feeding and mixing at the same time ,which mixing speed is fast and saving more time of mixing；

Stainless steel stirring blade

The barrel and stirring paddle are made of stainless steel and polished, which can easy to clean and no pollution.

Specification

NO.	Model	Capacity(kg/h)	Stirring motor power	Drying electric heating power Kw	Drying fan power (Kw)
1	VM-500	500	2.2	/	/
2	VM-1000	1000	4	/	/
3	VM-2000	2000	5.5	/	/
4	VM-3000	3000	7.5	/	/
5	VM-500-H	500	2.2	9	0.33
6	VM-1000-H	1000	4	14	0.55
7	VM-2000-H	2000	5.5	19	0.75
8	VM-3000-H	3000	7.5	27	1.1

Benefits of a Vertical Feed Mixer:

Here are some benefits to consider if you are considering a vertical feeding mixer.

These machines are simple to use and operate, require little maintenance, and are inexpensive.

These machines are very inexpensive to buy and operate.

These vertical mixers do not require any complex setup and are extremely simple to clean.

Here are some pointers to help keep your new parts functioning efficiently and smoothly for as long as possible.

You can also discover these products by contacting your local vertical feeding mixer dealer.

Because of its low capital cost, it is an excellent alternative for smaller-scaled farms and farmers with low ceilings.

The vertical feeding mixer can handle a wide range of feed components, including grain, ethanol co-products, dry hay, etc.

It is adaptable, allowing you to combine ratio elements in a single step.

The machine comes in a range of sizes and can be customized for a variety of uses.

Vertical feed mixers are less expensive than horizontal feed mixers.

Vertical mixers are more reliable and contain fewer parts.

In contrast to a horizontal mixer, a vertical feeding mixer is a complete system.

Because it is a packed machine, the vertical feeding mixer is much more suitable for small firms. Its spiral design outperforms a horizontal one. The vertical mixers are helpful for feedlots in addition to forage. Vertical mixers can operate with all the components or ingredients.

Heavy duty welded construction
• Industrial grade augers
• TEFC motors
• Multi-belt drive
• HD top drive bearing
• 60 degree cone
• Discharge slide gate
• gravity discharge
• Easily integrates with Ensign's automated
bulk bag filling system
• Lube free lower composite bushing for low maintenance operation
• Smart maintenance features
